What Are Categories of Soldering Iron Tips

Soldering iron tips are used for various purposes from making jewelry to producing circuit boards. So, this segment will help you identify the most common soldering iron tip that is most suitable for a piece of product you may be working with.

Stick around and read on for more information.

What Are Different Soldering Iron Tips Used For?

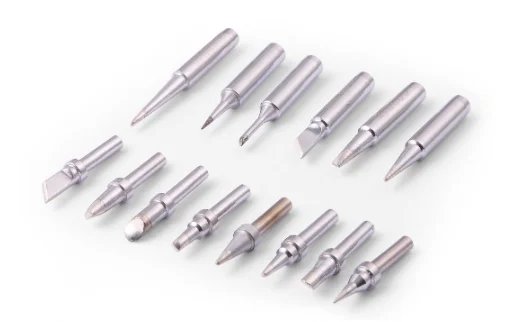

Different soldering iron tips are designed for different soldering tasks. The shape and size of a tip affect its contact area, heat transfer, solder-holding ability, and precision. Choosing the right tip can therefore make soldering easier and help produce more consistent joints.

Soldering Tip Type	Common Applications	Main Advantage
Conical Tip	Fine electronics, small joints, precision work	Precise access
Chisel Tip	PCB soldering, through-hole components, wires	Good heat transfer
Bevel Tip	General soldering, drag soldering	Large contact area
Hoof Tip	Drag soldering, SMD components	Holds and distributes solder
Knife Tip	Drag soldering, rework, solder bridge removal	Useful for controlled solder manipulation
Fine Point Tip	Small components and detailed work	High precision
Flat Tip	Larger solder joints and heat-sensitive applications	Broad heat transfer

A fine tip is not always the best choice. Larger tips can transfer heat more efficiently because they provide a greater contact area, while smaller tips offer better access to compact or closely spaced components.

Soldering Iron Tip Shape vs. Tip Size

Tip shape and tip size are two different factors to consider when choosing a soldering iron tip.

The shape determines how the tip contacts the solder joint and where heat is delivered. The size determines the contact area and the amount of heat that can be transferred to the joint.

For example, a small chisel tip and a large chisel tip have the same basic shape but are suitable for different applications.

Small tips provide better access to small pads and closely spaced components.
Medium tips are suitable for general PCB soldering and everyday electronics work.
Large tips provide greater thermal contact and are better suited to larger wires, terminals, and joints.

The best tip should be large enough to transfer sufficient heat to the joint while still providing the precision required for the work.

Tip: Choosing the smallest possible tip is not always the best approach. If the tip cannot transfer enough heat to the joint, soldering may take longer and become more difficult.

How to Choose the Right Soldering Iron Tip

The right soldering iron tip depends on the type of joint, component size, required precision, and amount of heat needed. Instead of choosing a tip based only on its shape, consider the complete soldering task.

For General PCB Soldering

A medium chisel or bevel tip is a practical choice for general PCB soldering. Its larger contact area allows efficient heat transfer to both the pad and component lead.

For Small Electronic Components

A fine conical or small chisel tip provides better access to small pads and closely spaced components. These tips are useful when precision is more important than maximum heat transfer.

For Through-Hole Components

A chisel tip is often a good choice because it can contact both the component lead and PCB pad efficiently.

For Wire Soldering

A medium or larger chisel tip can provide the heat transfer needed for wire connections. The appropriate size depends on the wire gauge and terminal size.

For SMD and Drag Soldering

Hoof, bevel, and knife tips can hold a small amount of solder and move it across multiple closely spaced leads. This makes them useful for drag soldering and certain SMD rework applications.

For Solder Bridge Removal

A knife or appropriately sized bevel tip can help control and remove excess solder between closely spaced pads.

Soldering Tip Selection Guide

Soldering Task	Recommended Tip	Why
General PCB soldering	Chisel / Bevel	Good heat transfer and control
Through-hole soldering	Chisel	Heats the pad and component lead efficiently
Fine electronics	Fine conical / small chisel	Better precision
SMD soldering	Fine chisel / conical	Suitable for small pads
Drag soldering	Hoof / Bevel / Knife	Holds and distributes solder
Wire soldering	Medium / large chisel	Greater thermal contact
Large solder joints	Large chisel / bevel	Higher heat transfer
Solder bridge removal	Knife / bevel	Better control of excess solder
Detailed rework	Fine conical / knife	Access to confined areas

Why Does Soldering Tip Shape Matter?

Soldering tip shape affects how efficiently heat is transferred from the soldering iron to the workpiece.

A tip with a larger contact area can generally transfer more heat to a joint, while a smaller tip allows the user to reach confined areas with greater precision.

The tip shape also affects how solder behaves on the working surface.

For example:

Conical tips provide precise access to small joints.
Chisel tips provide a broad contact surface for efficient heat transfer.
Bevel tips can hold solder and provide a larger working surface.
Hoof tips are useful for carrying solder during drag soldering.
Knife tips can be useful for drag soldering and controlled rework.

Therefore, tip selection is a balance between precision, contact area, heat transfer, and solder control.

1. K- Series or Knife Tips

The k- series soldering iron tip appears with a tilted tip resembling the shape of a knife. It is outstanding for repairing solder bridges and drag soldering. It is not difficult to do point soldering with this tip, but it is very hard as applied to the other tips.

2. B- Series or Conical Tips

The B-series tips are common because of their pointed cone-like form. Soldering can be performed at any angle since it has a very round tip and therefore this tip is used for common purposes.

3. C- Series or Bevel Tips

The C- series or bevel tips are utilized for drag soldering because they can hold more solder. Just like a grounded-up pencil, it has a curved surface. Whether they are far apart or in close range, you can extend the solder tip and little amount can also be applied at various points.

4. D- Series or Chisel Tips

The name D-series was derived from its shape which is that of a chisel. These tips are also used for general purpose soldering, just like the conical iron tips. They are very useful in soldering thick wires.

These tips come in different sizes, so make sure you choose one with a suitable size. If you choose one that’s too small, you may not reach all the points. One that’s too big would not help the solder flow too from one point to another which will create a sort of bridge.

5. Specialized Tips

Some specialized soldering iron tips are also made by manufacturers such as the spade tip which is used to scrape UV glue off from mirror or glass surfaces e.g. LCD screens.

6. I- Series or Needle Tips

The needle type of soldering iron is very sharp and was designed to do very thorough work and it is not applicable for soldering big components as it transmits fairly very less heat as compared to other tips.

Selecting the Right Soldering Iron Tip

· Select the tips that are similar to your soldering iron.

· Specify the type based on whether you want to do general-purpose soldering, detailed work, or drag soldering.

· Deduce or identify the size- if it is too large, you could damage the board and if it’s too small, enough heat may not be available for transfer. If you are just knowing how to solder, then avoid selecting a conical tip.

Amateurs tend to apply more weight attempting to increase the flow of solder – a particular error that can end up destroying the board.

Select a chisel tip that is right for wire, de-soldering, surface mount, and through holes.
