GORDAK 909D 3-in-1 Soldering and Rework Station with Adjustable DC Power Supply

The GORDAK 909D is a professional 3-in-1 soldering and rework station with an integrated adjustable DC power supply (0–15 V / 2 A). Designed with anti-static protection, a high-power hot air rework station, and a high-quality soldering iron, it is ideal for desoldering and soldering various components efficiently. The large LED digital display provides precise temperature readings for easy operation, while the compact and durable enclosure saves workspace.

Features

Hot Air Rework Station:
- Brushless fan with soft, uniform airflow.
- Maximum air flow up to 120 L / min, low air pressure ideal for small SMD components.
- High-power heating element for rapid heat-up and efficient component removal.
- Intelligent sleep-sensing handle: when placed on the stand, it automatically enters energy-saving sleep mode.
- Automatic cooling after shutdown to extend heater lifespan and protect handle components.
Soldering Station:
- High-quality, lead-free, anti-static heating element.
- Ergonomic and lightweight handle suitable for long-term use.
- Temperature adjustment knob with lock function to prevent unauthorized changes.
Adjustable DC Power Supply:
- Output: 0–15 V, 2 A.
- High-precision adjustment with external voltage measurement port for convenient testing of external DC devices.
Safety & Smart Features:
- Automatic fault detection with error code display for easy troubleshooting.
- USB 5 V / 700 mA output for charging compatible USB devices.
Design & Build:
- Compact, durable, and aesthetically designed main unit.

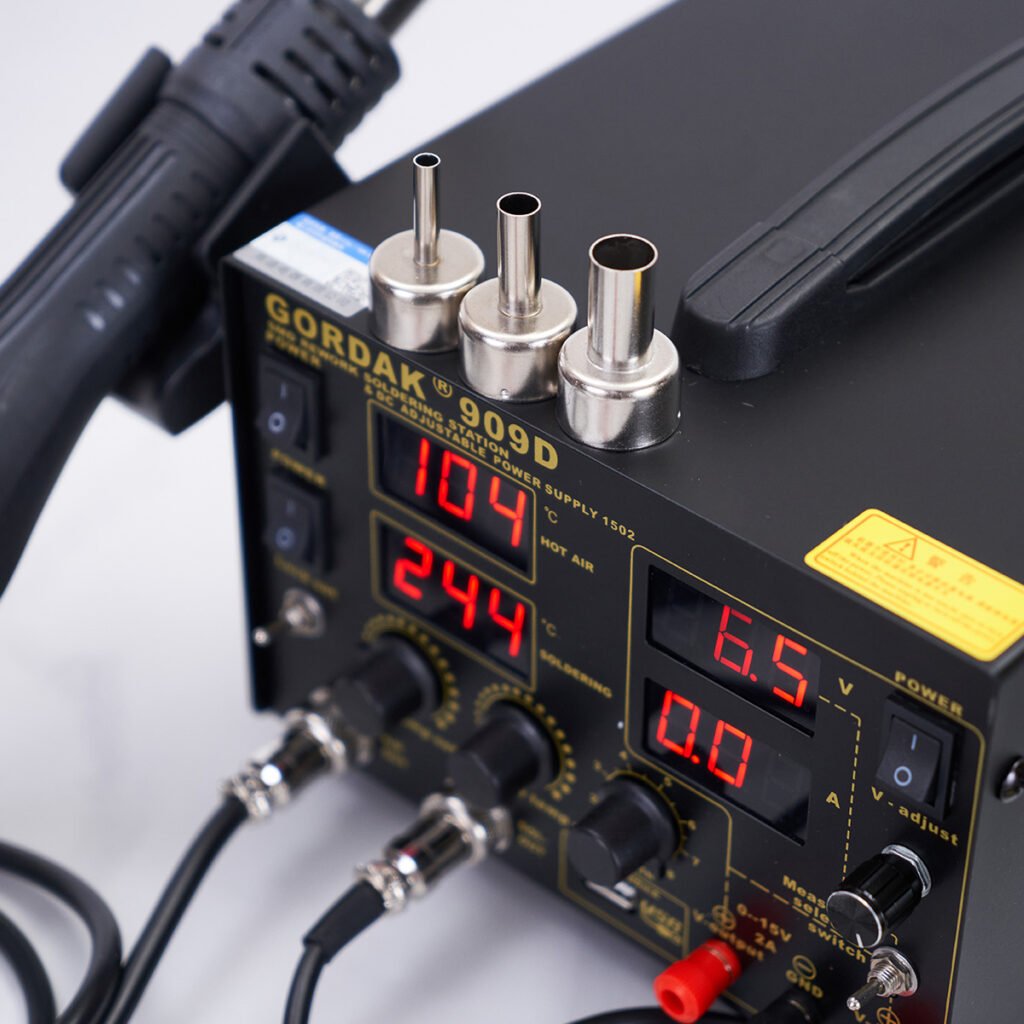

- Large four-digit LED display for clear temperature and voltage readings.

Specifications

Model	GORDAK 909D
Whole Machine Power	Max. ~ 530 W
DC Adjustable Power Supply	0–15 V, 1 A / 2 A, with external voltage measurement port
Hot Air Rework Station
Voltage	230 V AC, 50/60 Hz
Power	450 W
Pump Mode	Brushless fan, soft airflow
Air Flow	Max. 120 L / min
Temperature Range	100℃ – 500℃
Noise	< 45 dB
Soldering Station
Max Power	50 W
Output Voltage	24 V AC
Temperature Range	200℃ – 480℃
Heater	Ceramic heating element
Ground Resistance	< 200 mΩ
Ground Potential	< 2 mV
Packing	6 pcs/ctn, 59 × 32.5 × 54 cm, 28 kg/ctn
