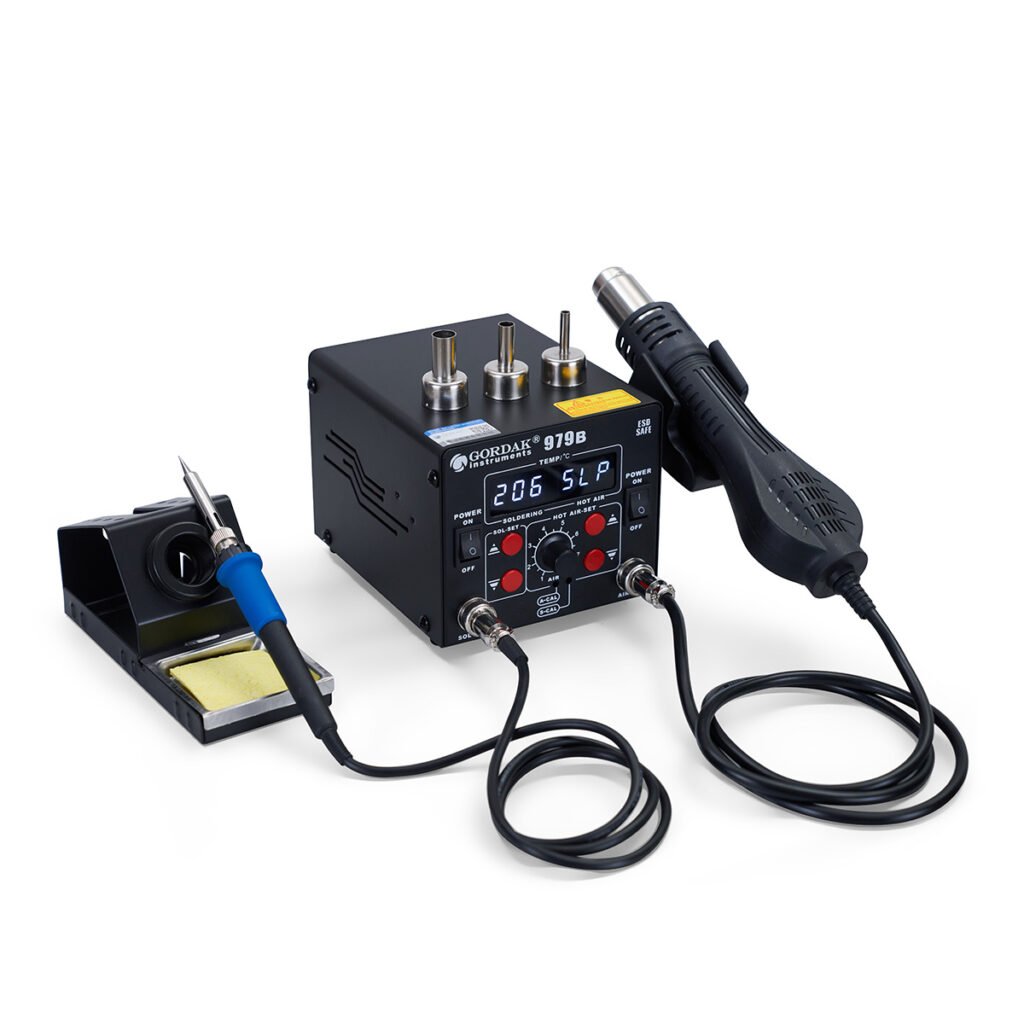

GORDAK 979B Hot Air Rework Station & Soldering Station

The GORDAK 979B Hot Air Rework Station & Soldering Station combines a powerful hot air rework station and a soldering station into one compact, efficient unit. Equipped with a full-range high-power switching power module, it adapts effortlessly to global voltage environments. Simply replace the hot air handle to achieve consistent power output across different electrical grids.

Featuring intelligent PID temperature control, rapid heating capability, and advanced sleep/energy-saving functions, the GORDAK 979B delivers both performance and reliability for professional technicians.

Hot Air Rework Station Specifications

The hot air station uses a spiral heating core that delivers rapid heat-up and stable high-temperature output. With strong and uniform airflow, it makes chip and component removal effortless. When the handle is placed on the holder, the unit automatically enters a cooling and sleep mode, lowering the temperature to 100°C before switching to standby. The white LED display and button-control interface provide clear, intuitive operation, while the compact casing design minimizes workspace usage and maintains a clean, efficient bench environment.

Item	Specification
Rated Voltage	230 V AC, 50/60 Hz
Max Power Consumption	450 W
Air Pump Type	Brushless fan (soft airflow)
Air Flow	Up to 120 L/min
Temperature Range	100°C – 500°C
Temperature Setting	Button control
Airflow Setting	Infinite adjustment via knob
Display	LED
Heating Element	Spiral heating core
Dormant Function	Yes (auto cool-down & sleep mode)
Handle Length	Approx. 1.3 m (with steel tube)

Soldering Station Specifications

The soldering station is equipped with an A1321 ceramic heating core that heats up quickly and maintains stable temperature performance. With intelligent PID control, it ensures precise temperature accuracy and rapid recovery during continuous soldering work. The unit also features an energy-saving sleep mode that helps extend the lifespan of the heating element, while the LED display and button-control interface provide a clear and simple operating experience.

Item	Specification
Power Consumption	70 W
Output Voltage	AC 27 V
Heater Power	70 W
Temperature Range	200°C – 480°C
Temperature Setting	Button control
Display	LED
Heating Element	A1321 ceramic heater
Dormant Function	Yes
Handle Length	Approx. 1.1 m (with tip)
Ground Resistance	< 200 mΩ
Ground Potential	< 2 mV

Technical Advantages

PID Intelligent Control – Ensures precise temperature regulation with rapid response and excellent thermal stability for both the hot air and soldering functions.
Fast Heat-Up – Heats up quickly at startup, allowing efficient workflow and reduced waiting time.
Stable Power Output – The full-range switching power module maintains consistent performance even under different grid conditions.
Intelligent Sleep Mode – When the handle is placed on the holder, the station automatically enters a sleep state, reducing energy consumption and extending heater lifespan.
Automatic Cooling & Sleep Modes – The system enters cooling or standby mode when idle, reducing energy consumption and extending the lifespan of key components.
Reliable Long-Term Operation – Designed for continuous professional use with consistent thermal performance and enhanced component protection.
