GORDAK 952H Cheap Hot Air Soldering Station

The GORDAK 952H Cheap Hot Air Soldering Station is a versatile and cost-effective solution for electronic assembly, repair, and rework. Featuring a combined anti-static hot air and soldering station, it offers independent operation of both units, improving efficiency while ensuring safe handling of delicate components.

Equipped with advanced PID closed-loop temperature control, stepless airflow adjustment, and high-power heating elements, the GORDAK 952H delivers rapid heat-up, precise temperature stability, and reliable performance for desoldering QFP, PLCC, SOP, BGA, and other temperature-sensitive components.

Designed for professional use, the lightweight soldering iron handle is heat-resistant and ideal for long-term SMD hand soldering, through-hole soldering, and rework applications. The hot air station features an intelligent automatic cooling system, continuing airflow until temperatures drop below 50℃ before shutting down, protecting both the unit and components.

Additionally, the main unit includes a USB 5 V / 700 mA output to charge compatible devices, making the GORDAK 952H a practical and efficient choice for electronics technicians seeking performance and reliability at an affordable price.

Features

Anti-static design with combined hot air and soldering stations – Fully powered system with LED digital display for hot air temperature and a clear temperature scale for the soldering iron. Both stations can operate independently without interference, improving overall work efficiency.
PID closed-loop temperature control – Equipped with an advanced electronic constant temperature control circuit. Stepless airflow adjustment delivers strong, stable airflow with fast temperature recovery. Precise and stable temperature control makes it safe for desoldering temperature-sensitive components such as QFP, PLCC, SOP, and BGA.

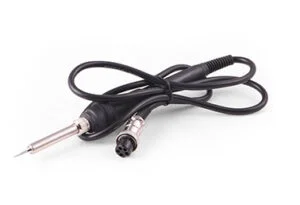

Lightweight, high-temperature-resistant soldering iron handle – Designed for long-term use, ideal for SMD hand soldering, rework, through-hole component soldering, and various processes requiring precise temperature control.
Intelligent automatic cooling system for the hot air station – The unit features a shutdown delay protection function. After powering off, the system continues blowing air until the air temperature drops below 50℃, then automatically shuts down. Uses imported long-life heating materials with advanced manufacturing processes, forming a high-power heating element with a lifespan far longer than ordinary heater wires.
USB power output – The main unit includes a USB 5 V, 700 mA output port for charging compatible USB devices.

Specifications

Model	GORDAK 952H
Hot Air Station
Rated Voltage	230 V AC, 50/60 Hz
Power	650 W
Pump Type	Membranous
Air Flow	120 L/min (Max)
Pump Power	45 W
Temperature Range	100℃ – 500℃
Noise	< 45 dB
Soldering Station
Power	60 W
Output Voltage	24 V AC
Temperature Range	200℃ – 480℃
Ground Potential	< 2 mV
Ground Resistance	< 200 mΩ
Heater	A1321 Ceramic
Packing	6 pcs/ctn
Carton Size	59 × 32.5 × 54 cm
Gross Weight	28 kg/ctn
