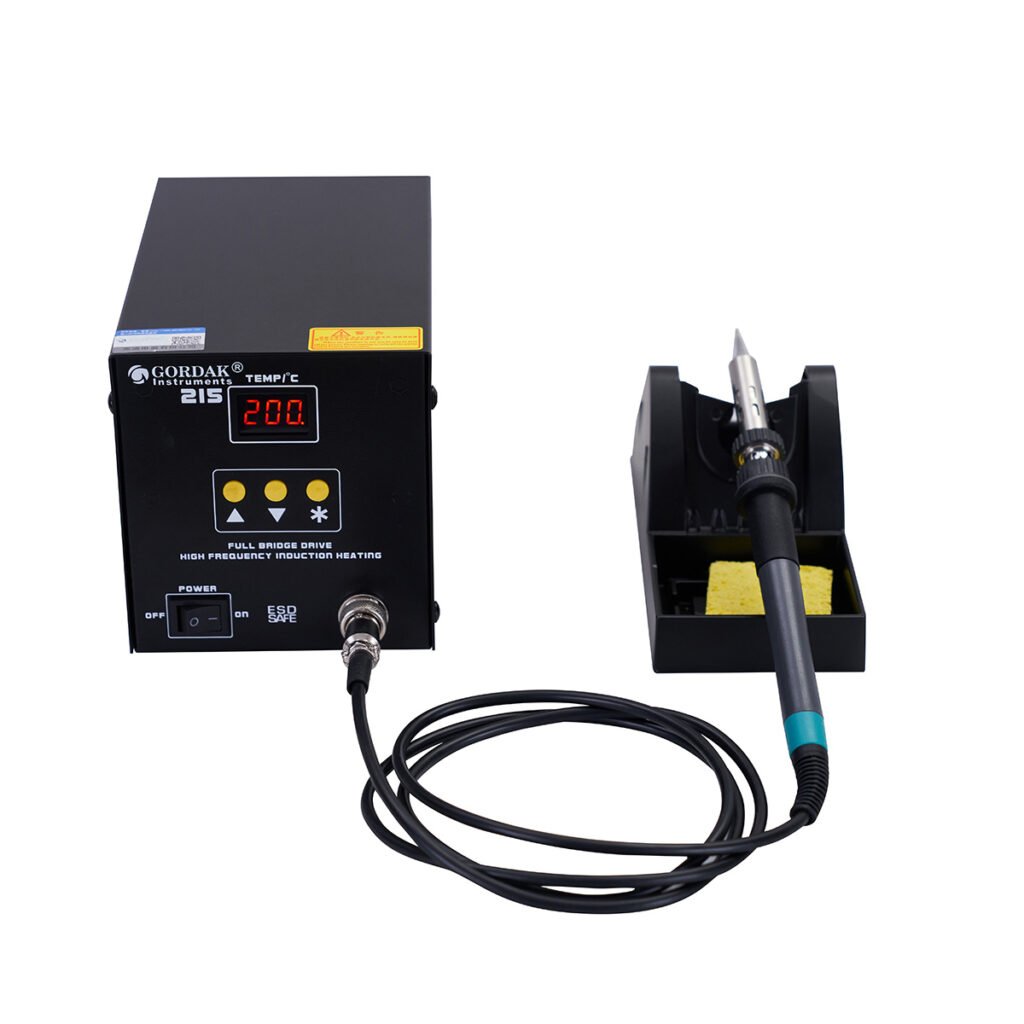

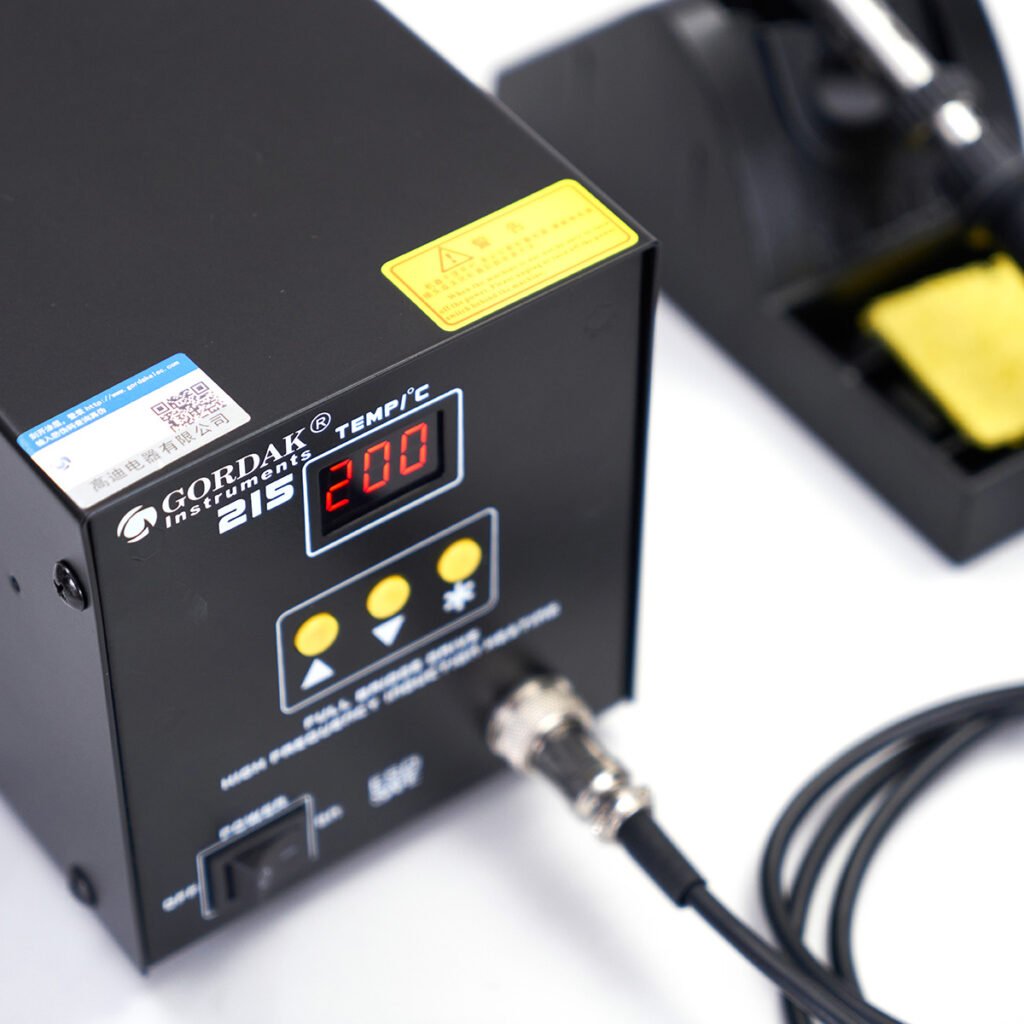

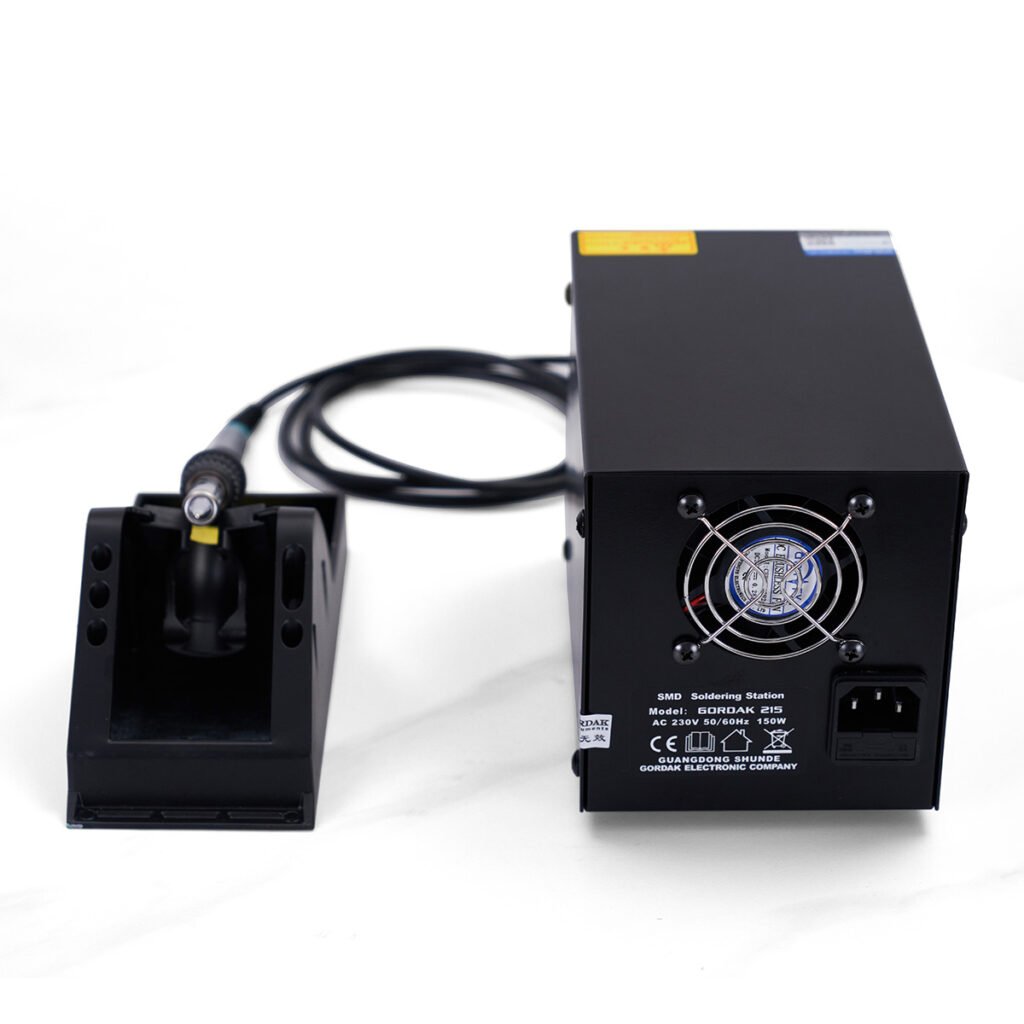

The GORDAK 215 Chinese Soldering Iron is a high-performance, ESD-safe soldering tool engineered for precision electronic assembly and professional repair work. Equipped with a microcomputer closed-loop PID intelligent temperature control system and an imported electromagnetic eddy-current heating element, it delivers powerful output, rapid temperature recovery, and highly stable performance across a wide range of soldering applications.
Features
-
ESD-Safe Design – Ensures safety and protection for sensitive electronic components during operation.
-
PID Intelligent Constant Temperature Control – Microcomputer closed-loop PID algorithm enables accurate temperature regulation, fast heating, and consistent thermal stability.
-
Imported Electromagnetic Eddy-Current Heating – Provides strong power, fast temperature rise, and excellent heat recovery—ideal for demanding and continuous soldering tasks.
-
Auto Sleep & Auto Shut-off – The high-quality handle is equipped with a sleep-sensing system. When placed on the stand or not used for a period of time, the machine automatically enters sleep mode, and will shut down after extended inactivity to save energy.
-
Self-Diagnosis & Error Code Display – Built-in fault self-detection system with corresponding error code prompts allows quick troubleshooting and maintenance.
-
Temperature Calibration Function – Easy-to-use software temperature calibration ensures long-term accuracy.
-
Lightweight, Ergonomic Handle – Designed for comfort and reduced fatigue, making it ideal for long-duration soldering work.
-
Multiple Temperature Setting Modes – Users can select different preset modes based on application requirements for faster and more efficient operation.
-
Password Protection – Prevents unauthorized changes to temperature settings, ensuring process consistency in shared workplaces.
- Durable, Compact Housing – A refined and robust outer construction that saves bench space while maintaining long-term reliability and aesthetic appearance.
Specifications
| Item | Specification |
|---|---|
| Model | GORDAK 215 |
| Rated Voltage | 230 V AC, 50/60 Hz |
| Output Voltage | 36 V, AC |
| Max Power | 150 W |
| Working Frequency | 180 kHz |
| Temperature Range | 200 – 480°C (Factory Default) |
| Temperature Setting | Button Control |
| Display Type | LED Display |
| Sleep Function | Yes |
| Heating Element | Electromagnetic Heating Element |
| Handle Length | Approx. 1.1 m (including tip) |
| Ground Resistance | < 200 mΩ |
| Ground Potential | < 2 mV |
| Packing | 4 pcs/ctn |
| Carton Size | 47 × 26 × 38.5 cm |
| Gross Weight | 17.5 kg |
